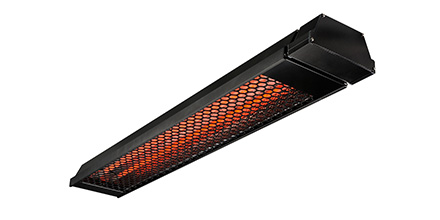

Heatstrip^® Intense with Remote & App

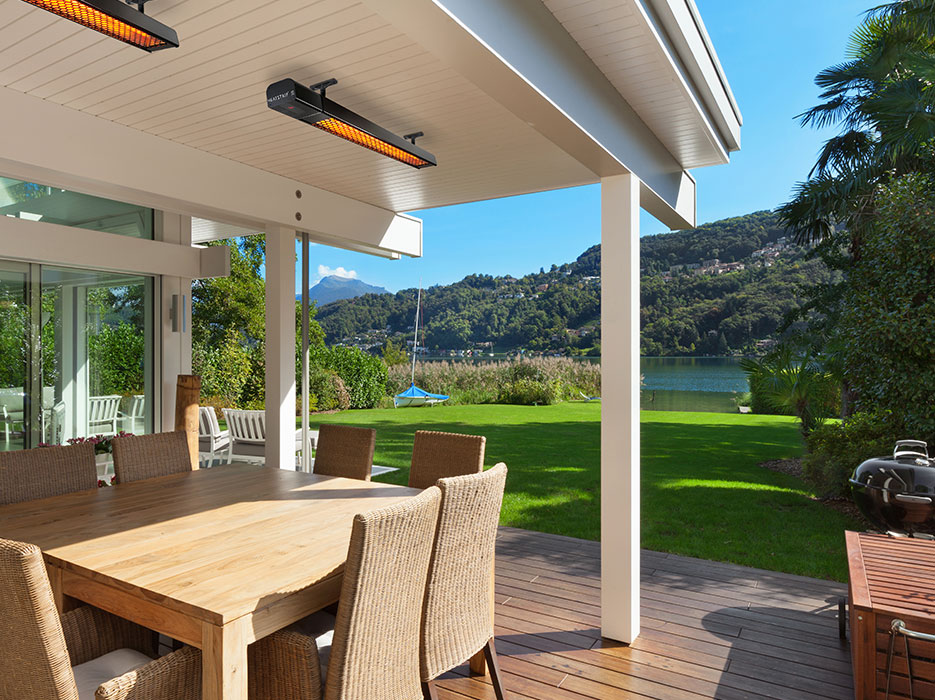

This sleek, all-black electric heating system provides a modern and attractive outdoor heating solution with high output and instant heat. Perfect for undercover and semi-exposed outdoor areas or indoor use, you can control it with an app or remote for added convenience.

FEATURES

Indoor/outdoor electric radiant heater.
2 models available X-THB2200BA (2200W) & X-THB3200BA (3200W).
Remote, APP plus smart home connectivity. Compatible with Google and Amazon smart home platforms. Bluetooth & WIFI.
Standard mounting bracket can be used for wall or ceiling mounting. Bracket can also be used to suspend the heater using chains or wires.
Ideal Mounting Height: 2.1 – 2.5m, 7-8ft.
Max mounting height 2.8m, 9ft.
3-year residential and 1-year commercial warranty.

Do you need help selecting the right product?

Features

Indoor/outdoor electric radiant heater.
2 models available X-THB2200BA (2200W) & X-THB3200BA (3200W).
Remote, APP plus smart home connectivity. Compatible with Google and Amazon smart home platforms. Bluetooth & WIFI.
Standard mounting bracket can be used for wall or ceiling mounting. Bracket can also be used to suspend the heater using chains or wires.
Ideal Mounting Height: 2.1 - 2.5m, 7-8ft.
Max mounting height 2.8m, 9ft.
3-year residential and 1-year commercial warranty.

The Range

X-THB2200BA

X-THB3200BA

Accessories

THBAC-001
(Flush Mount for X-THB2200BA)

THYAC-051
(Flush Mount for X-THB3200BA)

THYAC-047
Set of Extension Poles 300mm / 11.8in

THYAC-048
Set of Extension Poles 600mm / 23.6in

THYAC-049
Set of Extension Poles 900mm / 35.4in

THYAC-050
Set of Extension Poles 1200mm / 47.2in

ZBRAK-132B
Standard Mounting Brackets Kit

Video

Positioning

General recommendations for HEATSTRIP® Intense with Remote and App:

• Ideal mounting height: 2.1m to 2.5m, 7ft to 8ft. Maximum is 2.7m / 9ft. Minimum is 2.1m / 7ft.
• Ideal mounting location: ceiling mounted, directly above area to be heated (e.g. above a table)
The table outlines the coverage HEATSTRIP® Intense model, based on 3 different scenarios.

For example, in an outdoor area that is protected from prevailing winds by walls, café blinds etc, (e.g. outdoor enclosed)

This data is based on direct overhead ceiling mounting. If the heaters are wall mounted, the radiant footprint will be reduced. The data is based on direct overhead ceiling mounting. If the heaters are wall mounted, the radiant footprint will be reduced.

The diagrams show the approximate heating area for each model, based on both an indoor protected, outdoor enclosed and outdoor exposed location.

Heatstrip-Intense-with-Remote-and-App-Positioning

MODEL	INDOOR PROTECTED (m² / ft²)	OUTDOOR ENCLOSED (m² / ft²)	OUTDOOR EXPOSED (m² / ft²)
X-THB2200BA	14m² / 150.7ft²	9m² / 96.9ft²	5m² / 53.8ft²
X-THB3200BA	21m² / 226ft²	13m² / 139.9ft²	8m² / 86.11ft²

Mounting

The installation of HEATSTRIP® Intense with remote & app (X-THB-BA) is simple and easy with the standard mounting brackets supplied. For other more challenging locations there are a range of mounting options available - refer to below diagrams.

The HEATSTRIP® Intense with remote & app control can be mounted directly to the ceiling, flush mounted into the ceiling, angled downwards on a wall, suspended on chains, poles or attached to beams and rafters. Refer to the following pages for more detailed information on each mounting option.

Minimum mounting height (including flush mount) 2.1m / 7ft
Ideal mounting height (including flush mount) 2.2m – 2.5m / 7ft - 8ft
Maximum mounting height (including flush mount) 2.8m / 9ft

The mounting height of the electric heater can have a significant impact on performance. For mounting heights higher than the ideal range, we recommend the use of wires/chains or optional extension poles to reduce the height and ensure the heater is within the ideal range. Heater performance may be affected if outside this range.

Specifications

MODEL	VOLTAGE (V)	POWER (Watts)	CURRENT (Amps)	DIMENSIONS (mm / in)	WEIGHT (kg / lb)	CONNECTION	HEATING AREA (m² / ft²)	COLOUR
X-THB2200BA	240	2200	9.2	900 x 122 x 90mm 35.4 x 4.8 x 3.5in	6kg 13lb	Gang Box	5-9m² 54-97ft²	Black
X-THB3200BA	240	3200	13.3	1040 x 122 x 90mm 41 x 4.8 x 3.5in	7kg 15lb	Gang Box	8-13m² 86-140ft²	Black

Materials of Construction: Black anodized alloy casing and end caps. Powder coated grill. IPX5 Rated.

Voltage Nominal at 50 - 60 Hertz, Single Phase.

Downloads

Heatstrip Brochure

X-THB-BA Product Manual

X-THB-BA Flush Mount Manual
