Heatstrip^® Max DC Commercial Heater

Produces a high radiant infra-red temperature which is perfect for exposed outdoors sites, the dual element design allows for a very compact unit, and maximum efficiency.

FEATURES

High intensity infra-red instant heat
Ideal for coastal or hard to heat applications
High temperature output perfect for exposed outdoor site, high ceilings or hard to heat indoor/outdoor applications
Suitable for both permanently exposed and undercover installations
3-year residential and 3-year commercial warranty.

Do you need help selecting the right product?

Features

High output radiant heat, perfect for outdoor or tough to heat indoor sites
Dual glass element design
Maximum heat performance, multiple applications (perfect for exposed outdoor sites, high ceilings, hard to heat indoor and outdoor applications
Suitable for permanent outdoor mounting, no protection needed.
3-year residential and 3-year commercial warranty.
Corrosion protection
Standard mounting bracket can be used for ceiling and wall mounting.
Ideal mounting height 2.5m-2.8m, 8’ 2½” 9’ 2¼”

The Range

X-THX4000DC

X-THX6000DC

Accessories

ZBRAK-132B
Standard Mounting Brackets Kit

THYAC-047
Set of Extension Poles 300mm / 11.8in

THYAC-048
Set of Extension Poles 600mm / 23.6in

THYAC-049
Set of Extension Poles 900mm / 35.4in

THYAC-050
Set of Extension Poles 1200mm / 47.2in

Positioning

General recommendations for HEATSTRIP® MAX X-THXDC

Ideal mounting height 2.5m - 2.8m / 8′ 2½″ - 9′ 2¼″
Ideal mounting location: ceiling mounted, wall mounted, suspension by chains/wires, extension rods available.
In most outdoor or difficult-to-heat indoor applications, there are 2 methods when looking at the size and quantity of heaters required.
Option 1 is to comfort heat the entire area based on the total dimensions of the space, regardless of whether the entire area is being fully occupied or not.
Option 2 is to spot heat the high use areas, such as over outdoor tables, BBQ’s, lounges, assembly lines or indoor workstations.

The below table outlines the coverage of each HEATSTRIP® Max X-THXDC model. For example, in an outdoor area that is protected from prevailing winds by walls, café blinds etc, (eg outdoor enclosed), Model X-THX4000DC will cover 12m², 129-3/16ft²and Model X-THX6000DC will cover 16m², 172-1/4ft².

This data is based on direct overhead ceiling mounting. If the heaters are wall mounted, the radiant footprint will be reduced.
REFER TO TABLE BELOW

MODEL	OUTDOOR EXPOSED (m² / ft²)
X-THX4000DC	12m² / 129 3/16ft²
X-THX6000DC	16m² / 172 1/4ft²

Mounting

The installation of HEATSTRIP® Max DC is simple and easy with the standard mounting brackets supplied. For other more challenging locations there are a range of mounting options available.

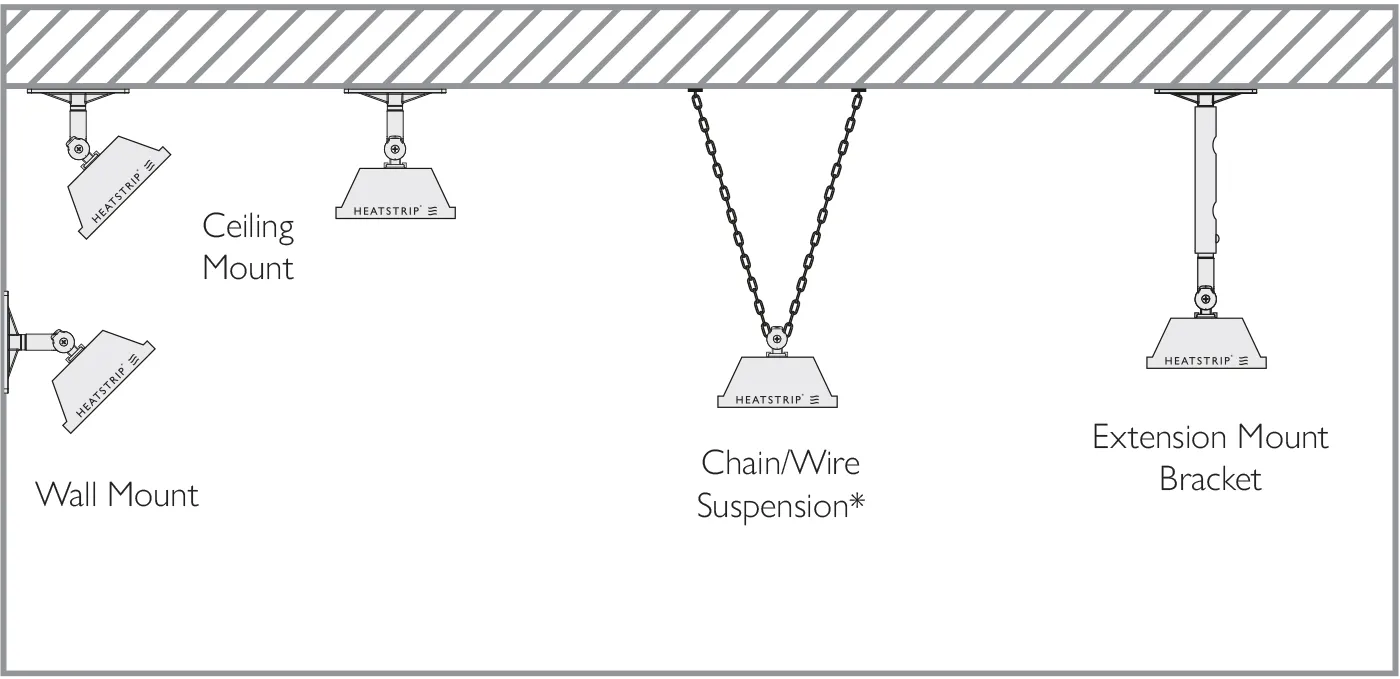

The HEATSTRIP® Max DC can be mounted directly to the ceiling, angled downwards on a wall, suspended on chains or poles, or attached to beams or poles.

Minimum mounting height 2.4m / 7' 10½″
Ideal mounting height 2.5m – 2.8m / 8' 2½″ - 9' 2¼″
Maximum mounting height 3m / 9' 10″

The HEATSTRIP® Max DC comes with a pair of standard mounting brackets. These adjustable brackets allow direct ceiling or wall mount, and come with pre-set angle options of parallel, 22.5° and 45°.

The mounting height of the electric heater can have a significant impact on performance. For mounting heights higher than the ideal range, we recommend the use of wires/chains or optional extension poles to reduce the height and ensure the heater is within the ideal range. Heater performance may be affected if outside this range.

*Chain/wire not included*

Specifications

MODEL	VOLTAGE (V)	POWER (Watts)	CURRENT (Amps)	DIMENSIONS (mm / in)	WEIGHT (kg /lb)	LEAD LENGTH (mm / in)	PLUG
X-THX4000DC	240	4000	16.6	1134 x 170 x 80mm 44 5/8” x 6 11/16” x 3 1/8”	5kg 11lb	1500mm 59 1/16”	NO
X-THX6000DC	240	6000	25	1274 x 170 x 80mm 50 3/16” x 6 11/16” x 3 1/8”	6kg 13.2lb	1500mm 59 1/16”	NO

Materials of construction: Anodised alloy casing and end caps, with a powder coated grille (Black). IPX5 Rating.

Voltage Nominal at 50 - 60 Hertz, Single Phase.
